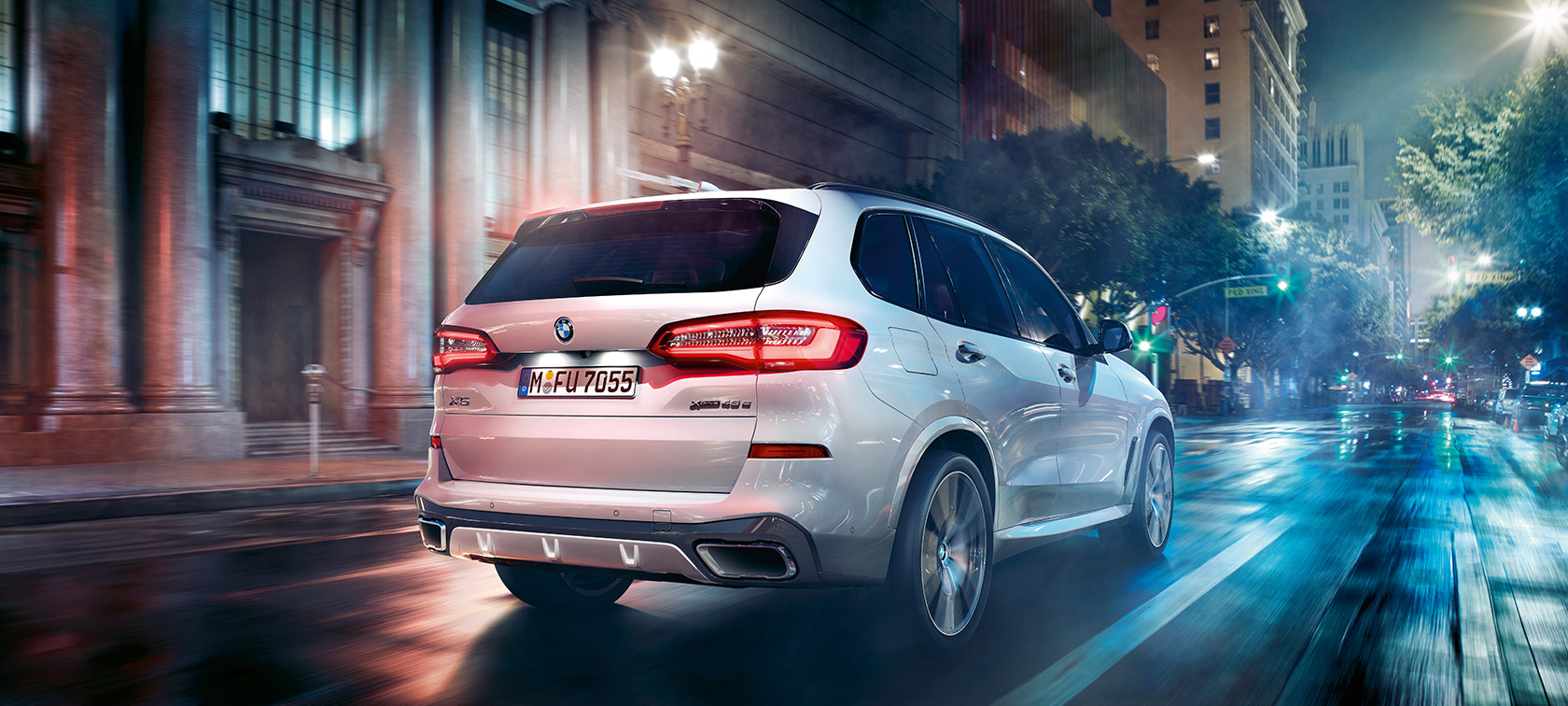

BMW X5 G05 2018 Mineral White metallic three-quarter rear view driving

THE X5

BMW X5: ENGINES & TECHNICAL DATA

THE X5BMW X5: ENGINES & TECHNICAL DATA

Discover the powerful petrol, diesel and hybrid engines as well as the dimensions and other technical data of the BMW X5.

Read more

TECHNICAL DATA OF THE BMW X5.

Select model

Weight

Unladen weight EU in kg 2510
Max. permissible weight in kg 3150
Permitted load in kg 715
Permitted axle load front/rear in kg 1,390/1,810
Luggage capacity min. (seats up or roof down) in l 500
Luggage capacity max. (seats down or roof up) in l 1720
Trailer load (unbraked) in kg -
Trailer load 8% (braked) in kg -
Trailer load 12% (braked) in kg -

Engine

Cylinders/valves 6/4
Capacity in ccm 2,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 210(286)/5,000-6,000
Engine torque (Nm) at 1/min 450/1,500-3,500
Compression ratio : 1 11.0

Performance

Top speed in km/h 235
Acceleration 0–100 km/h in s 5.6
Top speed fully electric in km/h 135

Fuel consumption

Urban in l/100 km -
Extra-urban in l/100 km -
Combined in l/100 km 2.5
CO2 combined emissions in g/km 56
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 69

Wheels

Tyre dimensions front 275/45 R20
Tyre dimensions rear 305/40 R20
Wheel dimensions and material front 9J x 20 inches, light alloy
Wheel dimensions and material rear 10.5J x 20 inches, light alloy

Range and charging

Electric range in km 77
Growth capacity of lithium–ion battery in kWh 24.0
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h 4.9
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h 6.6

Electric engine

Electric engine power kW (HP) at 1/min 83(113)/3,170
Electric Engine torque (Nm) at 1/min 265/0-3,170

Combined system power

Combined power kW (HP) 290(394)
Combined torque Nm 600
BMW wheels and tyres EU tyre label close-up

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.

Fuel consumption, electricity consumption and CO2 emissions of the BMW X5.

BMW X5 xDrive40i:
Fuel consumption in l/100 km (combined): 10.7–8.9
CO2 emissions in g/km (combined): 244–204

BMW X5 xDrive45e:
Fuel consumption in l/100 km (combined): 1.7–1.2
CO2 emissions in g/km (combined): 40–27
Electricity consumption combined in kWh/100 km: 27.7–24.3

Official data on fuel consumption, CO2 emissions, power consumption and electric range were determined in accordance with the mandatory measurement procedure and comply with Regulation (EU) 715/2007 valid at the time of type approval. In case of a range, figures in the WLTP take into account any optional equipment. For newly type-tested vehicles since 01.01.2021, the official data no longer exist according to NEDC, but only according to WLTP. For more information on the WLTP and NEDC measurement procedures, see www.bmw.de/wltp

For further information about the official fuel consumption and the specific CO2 emission of new passenger cars can be taken out of the „handbook of fuel consumption, the CO2 emission and power consumption of new passenger cars“, which is available at all selling points and at https://www.dat.de/angebote/verlagsprodukte/leitfaden-kraftstoffverbrauch.html

Read more
​

Fuel consumption, electricity consumption and CO2 emissions of the BMW X5.


  • BMW X5 xDrive45e:
    Fuel consumption in l/100km (combined): 2.5
    CO2 emissions in g/km (combined): 56

    Official data on fuel consumption, CO2 emissions, power consumption and electric range were determined in accordance with the mandatory measurement procedure and comply with Regulation (EU) 715/2007 valid at the time of type approval. In case of a range, figures in the WLTP take into account any optional equipment. For newly type-tested vehicles since 01.01.2021, the official data no longer exist according to NEDC, but only according to WLTP. For more information on the WLTP and NEDC measurement procedures, see www.bmw.de/wltp

    For further information about the official fuel consumption and the specific CO2 emission of new passenger cars can be taken out of the „handbook of fuel consumption, the CO2 emission and power consumption of new passenger cars“, which is available at all selling points and at https://www.dat.de/angebote/verlagsprodukte/leitfaden-kraftstoffverbrauch.html

​
