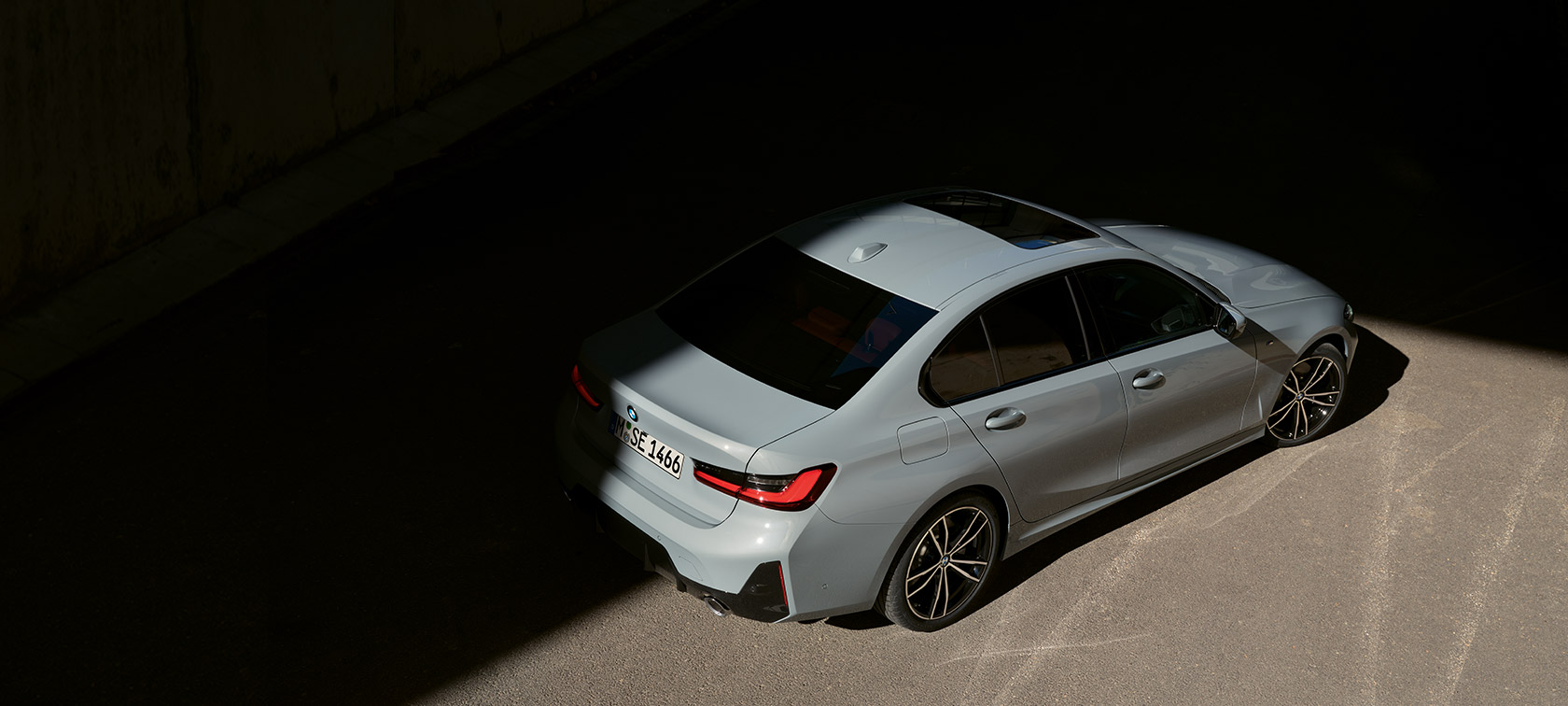

BMW 3 Series Sedan LCI G20 three-quarter rear view standing bird’s-eye view

THE NEW 3

THE NEW BMW 3 SERIES SEDAN: ENGINES & TECHNICAL DATA

THE NEW 3THE NEW BMW 3 SERIES SEDAN: ENGINES & TECHNICAL DATA

The key facts and figures for the new BMW 3 Series Sedan at a glance:


  • Engines, consumption and CO2 emissions
  • Performance data such as displacement, hp, Nm and acceleration
  • Weight, dimensions, wheel and tyre sizes
Read more

TECHNICAL DATA OF THE NEW BMW 3 SERIES SEDAN.

Select model

Weight

Unladen weight EU in kg 1,590
Max. permissible weight in kg 2,070
Permitted load in kg 555
Permitted axle load front/rear in kg 965/1,170
Luggage capacity min. (seats up) in l 480
Luggage capacity max. (seats down) in l -
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,600
Trailer load 12% (braked) in kg 1,600

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 135 (184)/5,000-6,500
Engine torque (Nm) at 1/min 300/1,350-4,000
Compression ratio : 1 11.0

Performance

Top speed in km/h 235
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 7.4

Fuel consumption

Urban in l/100 km 7.6
Extra-urban in l/100 km 5.8
Combined in l/100 km 6.5
CO2 combined emissions in g/km 147
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 7.5 J x 18, 225/45 R18
Tyre dimensions rear 8.5 J x 18, 255/40 R18
Wheel dimensions and material front 7.5 J x 18 , Light alloy
Wheel dimensions and material rear 8.5 J x 18 , Light alloy

Range and charging

Electric range combined in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,600
Max. permissible weight in kg 2,080
Permitted load in kg 555
Permitted axle load front/rear in kg 980/1,170
Luggage capacity min. (seats up) in l 480
Luggage capacity max. (seats down) in l -
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,600
Trailer load 12% (braked) in kg 1,600

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 190 (258)/4,500-6,500 - 5,000-6,500
Engine torque (Nm) at 1/min 400/1,600-4,000 - 1,550-4,400
Compression ratio : 1 10.2

Performance

Top speed in km/h 250
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 5.8

Fuel consumption

Urban in l/100 km 8.0
Extra-urban in l/100 km 5.7
Combined in l/100 km 6.5
CO2 combined emissions in g/km 149
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 7.5 J x 18, 225/45 R18
Tyre dimensions rear 8.5 J x 18, 255/40 R18
Wheel dimensions and material front 7.5 J x 18 , Light alloy
Wheel dimensions and material rear 8.5 J x 18 , Light alloy

Range and charging

Electric range combined in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,845
Max. permissible weight in kg 2,290
Permitted load in kg 520
Permitted axle load front/rear in kg 1,035/1,320
Luggage capacity min. (seats up) in l 375
Luggage capacity max. (seats down) in l -
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,500
Trailer load 12% (braked) in kg 1,500

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 135 (184)/5,000-6,500
Engine torque (Nm) at 1/min 300/1,350-4,000
Compression ratio : 1 11.0

Performance

Top speed in km/h 230
Top speed electrical in km/h 140
Acceleration 0–100 km/h in s 5.8

Fuel consumption

Urban in l/100 km -
Extra-urban in l/100 km -
Combined in l/100 km 2.5
CO2 combined emissions in g/km 57
Electricity consumption, combined in kWh/100km 17.9
Tank capacity, approx. in l 40

Wheels

Tyre dimensions front 7.5 J x 18, 225/45 R18
Tyre dimensions rear 8.5 J x 18, 255/40 R18
Wheel dimensions and material front 7.5 J x 18 , Light alloy
Wheel dimensions and material rear 8.5 J x 18 , Light alloy

Range and charging

Electric range combined in km -
Growth capacity of lithium-ion battery in kWh 12.0
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h 3.6

Electric engine

Electric engine power kW (PS) at 1/min 83 (113)/3,170
Electric Engine torque (Nm) at 1/min 265/100-2,500

Combined system power

Combined power kW (PS) 215 (292)
Combined torque Nm 420

Fuel consumption and CO2 emissions.

  • BMW 320i Sedan:
    Fuel consumption in l/100 km (combined): 6.5
    CO2 emissions in g/km (combined): 147

    BMW 330i Sedan:
    Fuel consumption in l/100 km (combined): 6.5
    CO2 emissions in g/km (combined): 149

    BMW 330e Sedan:
    Fuel consumption in l/100 km (combined): 2.5
    CO2 emissions in g/km (combined): 57

    Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

    ** At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers.
